mountune Fiesta ST MRX Turbocharger Upgrade

mountune Fiesta ST MRX Turbocharger Upgrade

SKU: 2364-TU-BWA

$2,389.00
$2,389.00 $2,389.00
Sale Sold out
he Mountune MRX Turbocharger Upgrade for the 2014-19 Fiesta ST offers greater power output with minimal increase in turbocharger lag, which greatly enhances the driving experience.

Tested and validated over thousands of miles for durability and performance, the Mountune MRX Turbocharger Upgrade includes all required hardware, fittings and hoses. This upgrade does not require any fuel system upgrades. The Fiesta MRX Turbocharger Upgrade has been developed for those that desire a fully engineered upgrade that provides an optimized power band. Unlike other upgrades that deliver just peak or high RPM power, the Mountune MRX Turbocharger offers performance throughout the entire power band ensuring a very responsive and drivable car. The Mountune MRX Turbocharger Upgrade is designed for those that are looking for well balanced yet extremely powerful performance derived from years of developing race winning Ford 4 cylinder turbocharged engines.

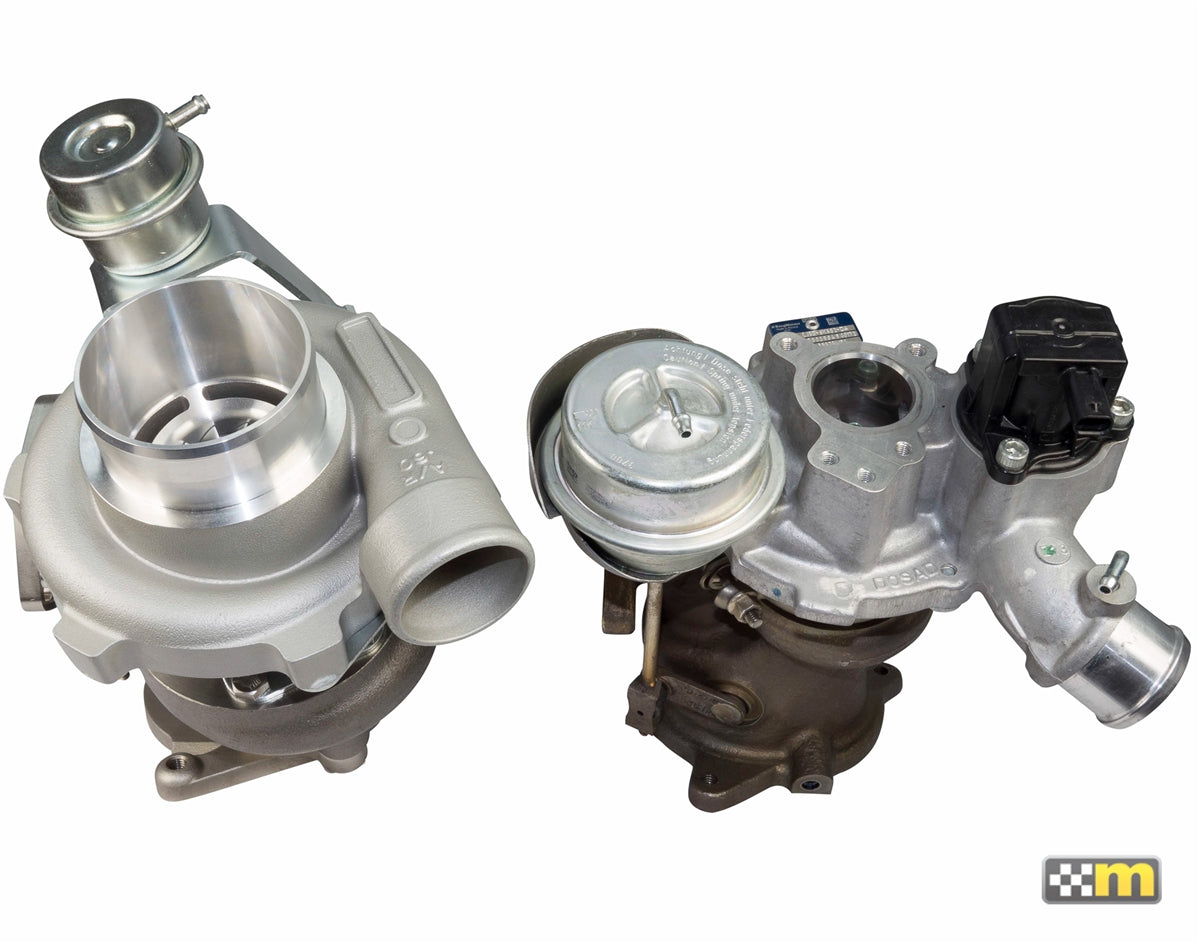

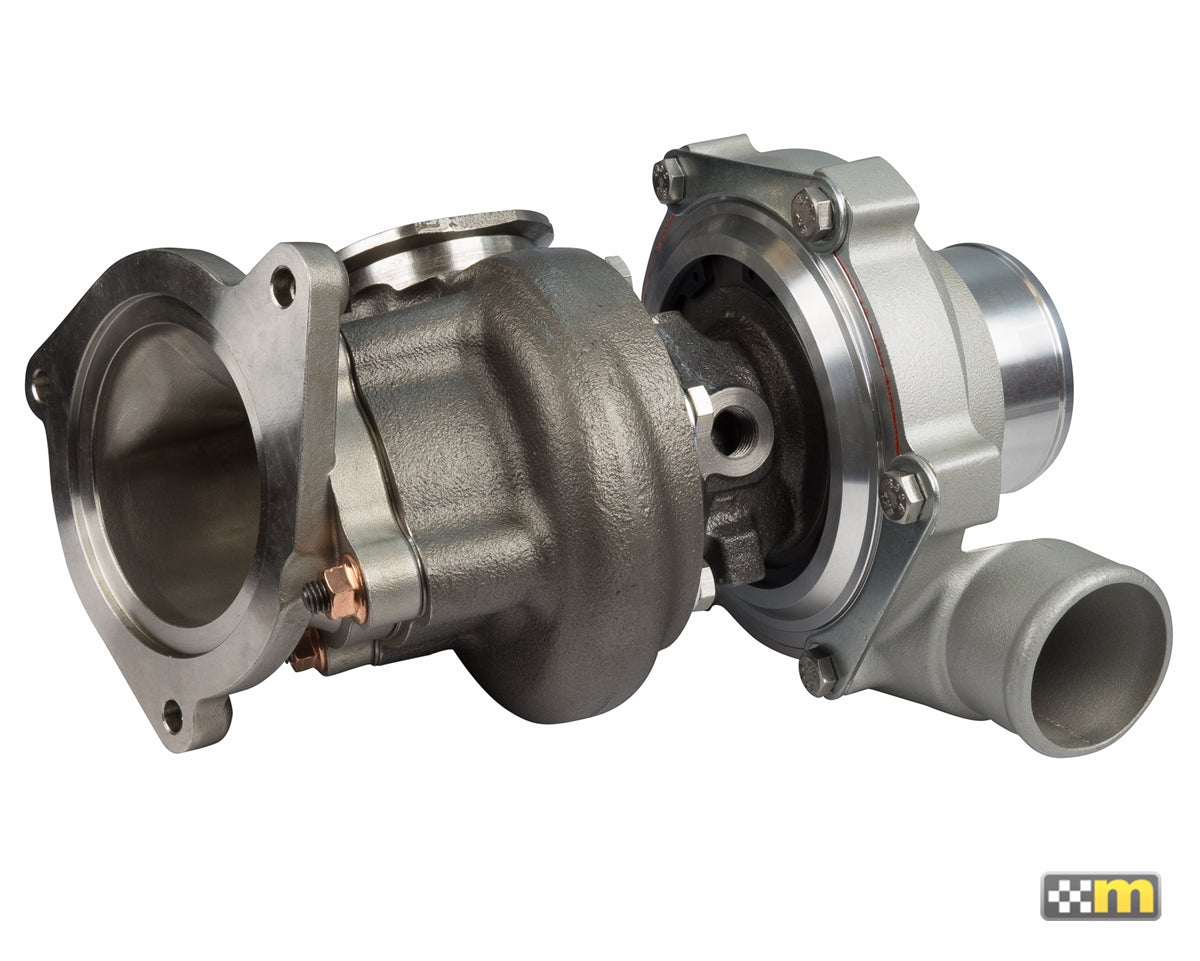

The Fiesta ST MRX Turbocharger Upgrade is engineered around a genuine Garrett GT2554R core that features a custom engineered 11-blade billet compressor wheel and matching 3" inlet anti-surge compressor housing for incredible response and power. Developed as a complete system with everything available from one source ensures the performance and quality you’ve come to expect from mountune. Your existing original stock pipe will bolt on but we recommend using a high flow downpipe for maximum performance.

Note: It is highly recommended to use our special locking fastener kit during installation PN 2364-LFK-AA

Note: This product is engineered for a North American specification vehicle for use in North America. We cannot fully support this product outside of the region it was designed for.


Turbocharger Features
  • Dual Row Ball Bearings - lowest friction and fastest spool/response
  • Water Cooled Center Section
  • Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
  • Cast Stainless Steel exhaust adapter

Kit Features
  • mountune Stainless Steel V-Band Conversion
  • Preformed coolant hard lines ensure trouble-free installation and performance
  • Optional mountune recirculation (BOV) valve can be installed if you do not already have one.
  • Pre-installed mountune Billet Wastegate Actuator- No additional cost.

What hardware is included
  • 1x mountune MRX Fiesta Turbo Kit , now with Billet Wastegate Actuator included
  • 1x mountune Stainless Steel V-Band Turbo mount
  • 1x mountune Aluminum lower charge pipe
  • 1x mountune / Garrett GT2554R with custom 11-blade compressor wheel
  • 1x mountune Silicone Compressor Inlet Hose Assembly
  • 2x Stainless Steel Hose Clamp – SAE #52
  • 2x Stainless Steel Hose Clamp – SAE #44
  • 1x Turbocharger Oil Inlet Hose Assembly
  • 1x Adapter Fitting, M12x1.5 to -4
  • 1x Crush Washer, M12
  • 1x Adapter Fitting, M14x1.5 to -6
  • 1x Crush Washer, M14
  • 1x Water Pipe #1, Block to Turbo
  • 1x Water Pipe #2, Water Neck to Turbo
  • 1x Tube Adapter, Turbo Oil Drain
  • 1x Gasket, Oil Return Tube
  • 1x mountune 5-Ply Compressor Outlet Silicone Elbow Hose
  • 1 x 65" Vacuum Hose, Silicone 4mm
  • 2x Screw, M8 x 1.25 x 16 Socket Head
  • 2x Nut, M6 x 1.0 Flanged Nylon Locknut
  • 2x Nut, M6 x 1.0 Flanged, Serrated
  • 2x Screw, M6 x 1.0 x 25 Socket Head

What you need
  • Upgraded intercooler such as mountune PN 2364-IC-BA2
  • Cobb Accessport PN AP3-FOR-001 and a competent tuner or calibrator
  • mountune Intake or suitable option PN 2364-CAIS-AA
  • Upgraded High Flow Downpipe
  • Replacement Blow Off Valve such as our PN 2364-BOV-KIT
Disclaimer
As with any upgrade of this type, additional strain is placed upon your engine and drive train. While we have thoroughly tested and validated this upgrade without issues, additional power, cylinder pressure and temperatures may cause engine damage and/or complete failure. It is advised that you upgrade your internal engine components and drive train to support the additional power and performance. For motorsport and track use, it is strongly recommended to upgrade your engine internal components to avoid catastrophic engine failure. This product is for race and track use only.

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards. Click Here for Emissions compliance information.
