Piper Cams

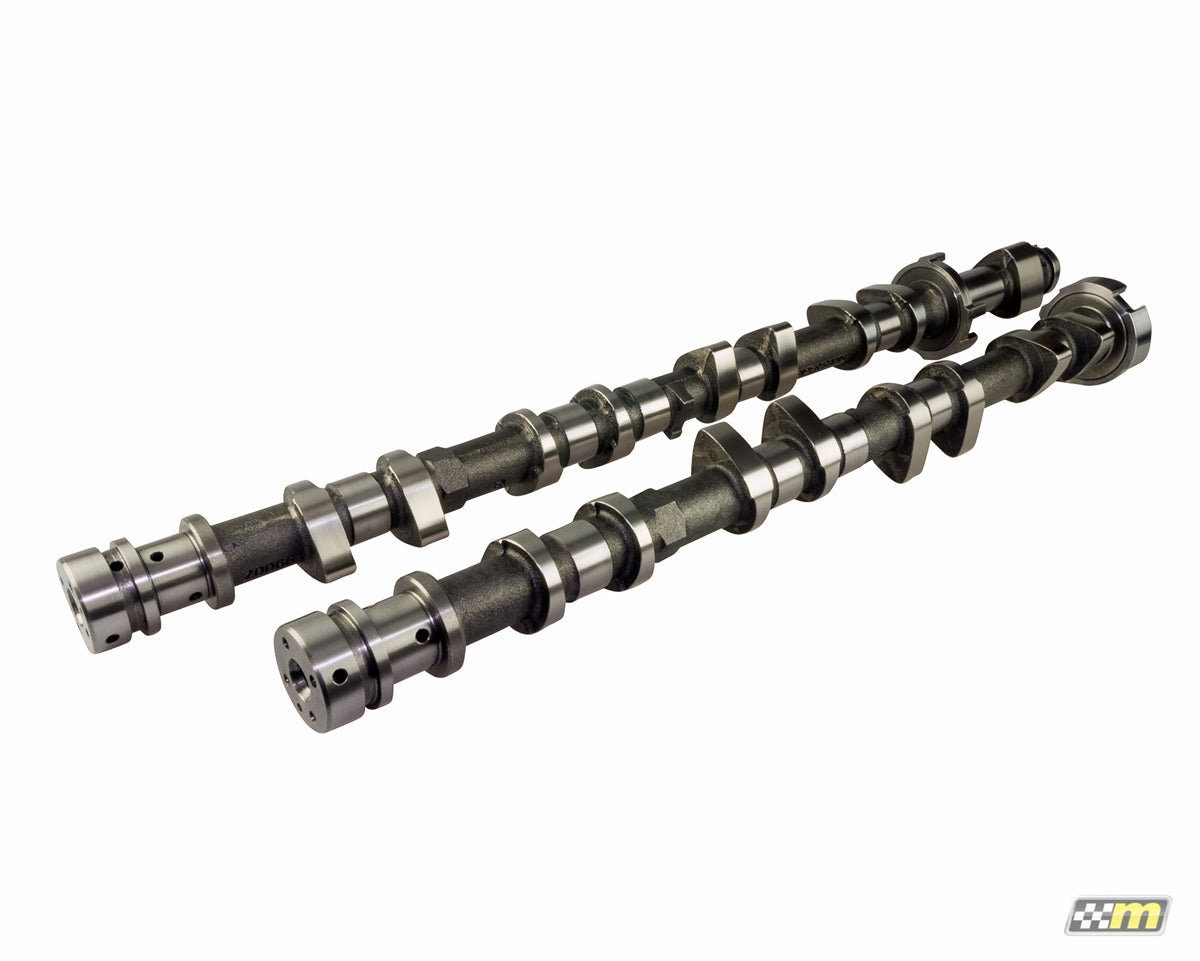

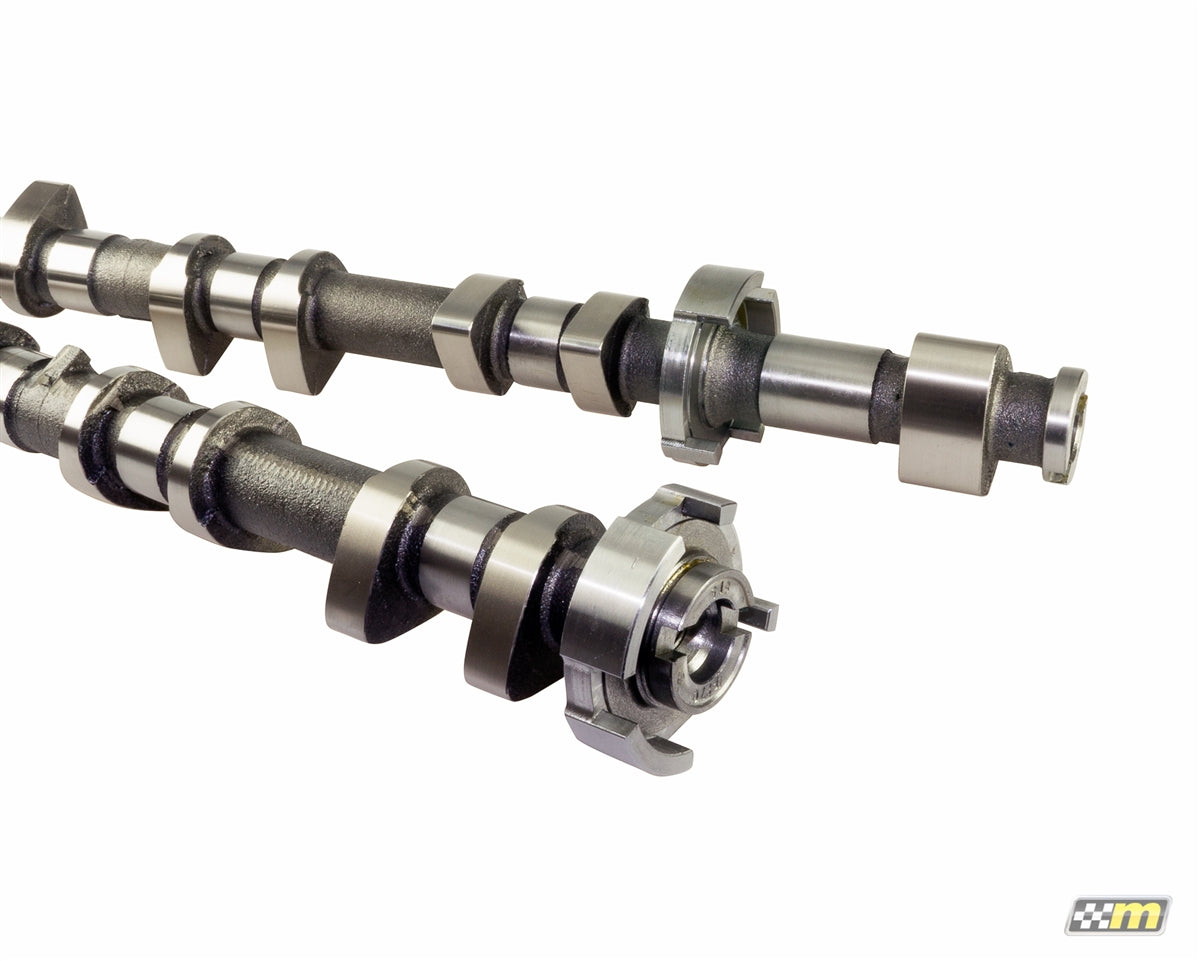

mountune Camshaft Set - Ford 2.0L EcoBoost

mountune Camshaft Set - Ford 2.0L EcoBoost

6063-CS1-AA
$1,715.00
$1,715.00 $1,715.00
Sale Sold out

Mountune has been engineering camshafts for multi-valve Ford engines for over 35 years. Our extensive background in engine development and motorsports results in a camshaft profile that delivers power across a broad RPM range. Designed for excellent turbocharger response thereby increasing torque and power, each Mountune camshaft is ground from brand new blanks on a BERCO LYNX 2000 CNC camshaft grinder to professional standards by our technical partner Piper Cams. Each camshaft is then de-burred and with special attention to lobe edges to protect camshaft followers from premature wear. This attention to detail ensures accuracy and quality that is only found at the highest levels of motorsport.

Includes:

  • Mountune Camshaft set (Specify Profile)

Note: Each Profile is listed below for your convenience when choosing the right profile for your needs.

V1 Camshafts:
Our "V1" profile is a true drop-in type camshaft set that works with a standard valve train and other related components. The added lift and duration enhance the mid to top-end power and compliments the stock turbo on the 2.0L Focus ST. No other modifications are required although we do recommend our single valve spring upgrade set to ensure maximum valve control during sustained high rpm applications such as track day and drag race use (PN 6063-VS1-AA)

  • Precision ground from new blanks
  • Broad power band maintains drivability
  • Excellent all-around camshaft profile

V1 Camshaft Features:

  • Power Band 1800-6500 rpm
  • Intake Duration 244º (OE Duration 234º)
  • Exhaust Duration 234º (OE Duration 224º)
  • Intake Valve Lift 8.64mm (OE 8.00mm)
  • Exhaust Valve Lift 8.00mm (OE 6.99mm)

V2 Camshafts:

Our "V2" profile with added lift and duration enhances the mid to top-end power and compliments the stock turbo and works extremely well with larger-than-stock turbochargers. This camshaft set should be used with our upgraded V2 dual valve spring set that is matched to this profile and provides optimized valve control during sustained high rpm applications such as track day and drag race use. (PN 6063-VS2-AA)

  • Precision ground from new blanks
  • Broad power band maintains drivability
  • Excellent all-around camshaft profile and works well with larger-than-stock turbochargers

V2 Camshaft Features:

  • Power Band 2000-7000 rpm
  • Intake Duration 256º (OE Duration 234º)
  • Exhaust Duration 244º (OE Duration 224º)
  • Intake Valve Lift 9.60mm (OE 8.00mm)
  • Exhaust Valve Lift 8.53mm (OE 6.99mm)

V3 Camshafts:

Our race-proven "V3" profile with added lift and duration enhances top-end power and works extremely well with larger-than-stock turbochargers. This camshaft set should be used with our upgraded V2 dual valve spring set that is matched to this profile and provides optimized valve control during sustained high rpm applications such as track day and drag race use. (PN 6063-VS2-AA)

  • Precision ground from new blanks
  • Broad power band maintains drivability
  • Excellent all-around camshaft profile and works well with larger-than-stock turbochargers

V3 Camshaft Features:

  • Power Band 2000-7500 rpm
  • Intake Duration 264º (OE Duration 234º)
  • Exhaust Duration 256º (OE Duration 224º)
  • Intake Valve Lift 10.85mm (OE 8.00mm)
  • Exhaust Valve Lift 9.70mm (OE 6.99mm)

V4 Camshafts:

Our "V4" profile with added lift and duration enhances top-end power and works well with larger-than-stock turbochargers.

  • Precision ground from new blanks
  • Broad power band maintains drivability
  • Excellent Race camshaft profile

V4 Camshaft Features:

  • Power Band 3000-8000 rpm
  • Intake Duration 272º (OE Duration 234º)
  • Exhaust Duration 268º (OE Duration 224º)
  • Intake Valve Lift 11.25mm (OE 8.00mm)
  • Exhaust Valve Lift 10.80mm (OE 6.99mm)

Applications:
  • 2013-2018 Focus ST
  • Ford EcoBoost 2.0L Engines
