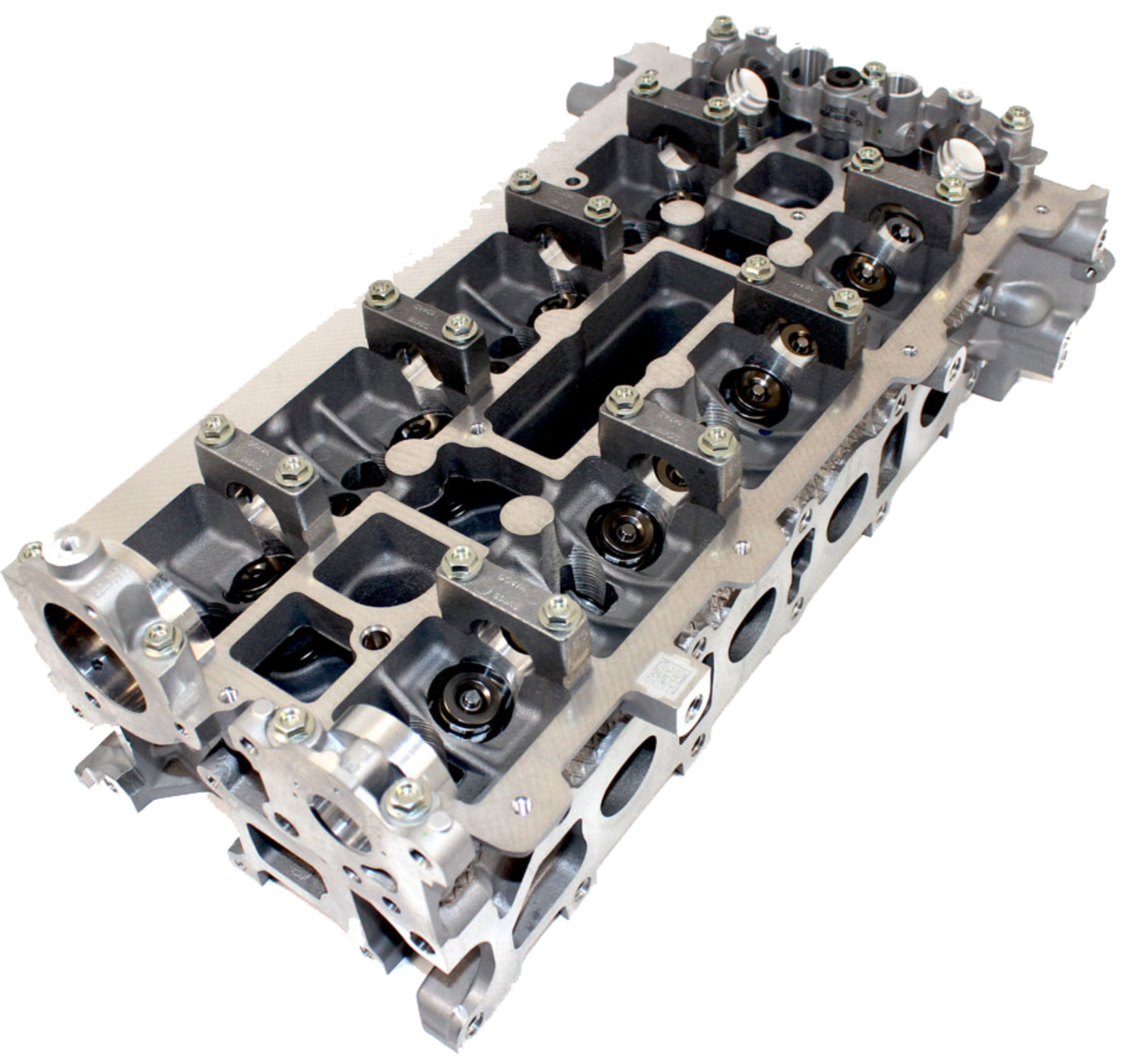

Ford Racing 2.0L EcoBoost 4 Port Cylinder Head

Ford Racing 2.0L EcoBoost 4 Port Cylinder Head

M-6049-20EBIP

$1,249.00
$1,249.00 $1,249.00
Sale Sold out

This head features four individual exhaust ports for maximum flow and performance. Requires custom exhaust manifold.

Cylinder Head For The 2.0L EcoBoost Engine

  • Features Individual Exhaust Ports
  • Uses 2.0L EU Head Gasket PN AG9Z-6051-A
  • Oil Drainback Pass.
  • Intended For Higher Horsepower Custom Engine Builds
  • Head Comes Assembled with Valves and Springs
  • Intake Valve Size 32.5mm; Exhaust Valve Size 28mm (2.3L = 30mm)
  • Combustion Chamber Size - 42.2cc Nominal
  • No Camshaft or Followers Included
  • Production Intake From All 2.0L and 2.3L Engines Will Fit
  • Requires Custom Exhaust Manifold
  • Designed With Direct Injection Fuel System Features

Build Times & Shipping Information

CURRENT BUILD TIME: 8-12 Weeks (As of 2025 ) but may vary.

Please note engine assemblies, including heads, are considered custom products and cannot be returned. Additionally, once the engine build and assembly process has begun, the order cannot be canceled.

For more information please contact us.

Installation & Break-In Process

To see all available installation and break-in instructions, click here.

Disclaimers & Legal

WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards.

Click Here for emissions compliance information.

California Residents Prop 65 Information
California’s Proposition 65 entitles California consumers to special warnings for products that contain chemicals known to the state of California to cause cancer and birth defects or other reproductive harm if those products expose consumers to such chemicals above certain threshold levels. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information visit www.P65warnings.ca.gov.
