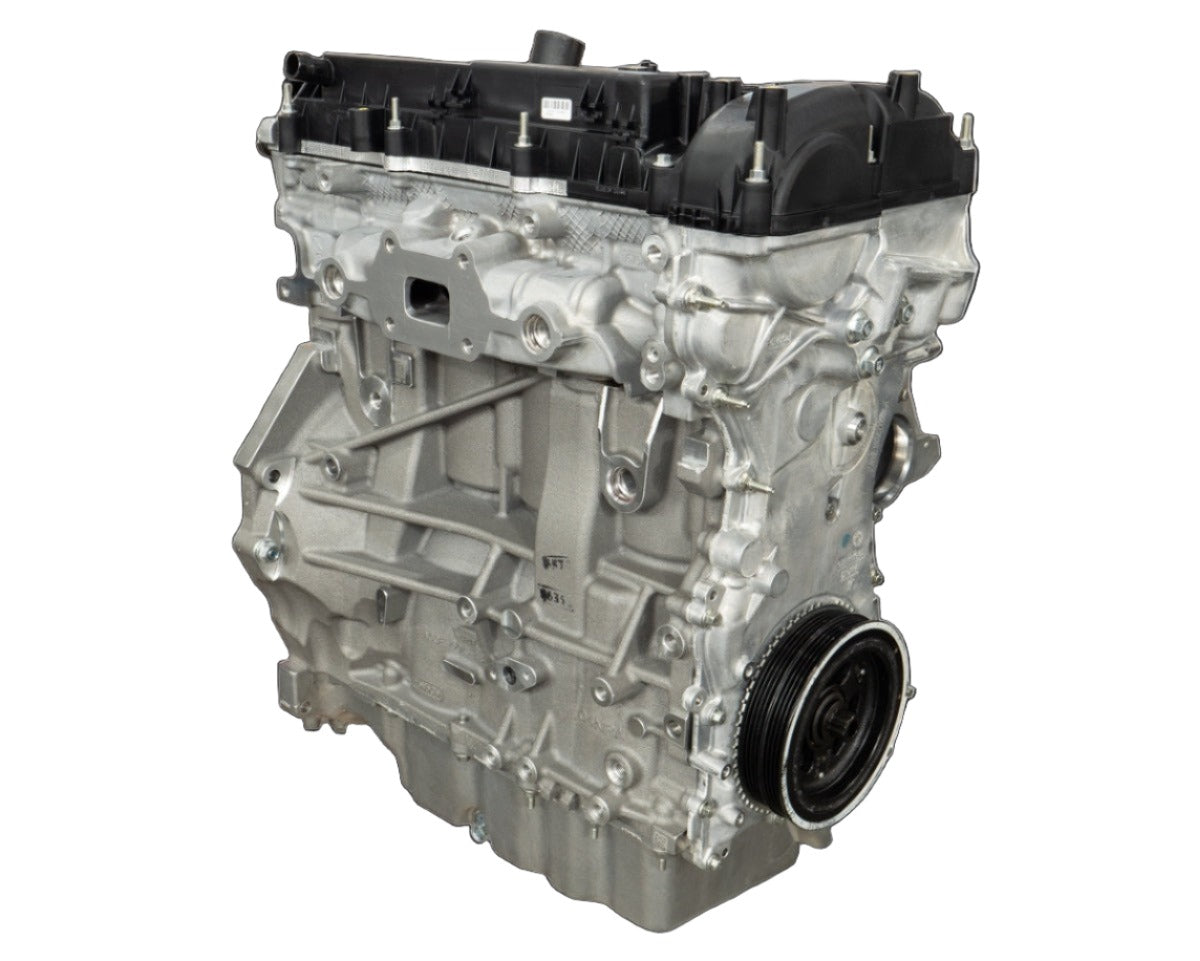

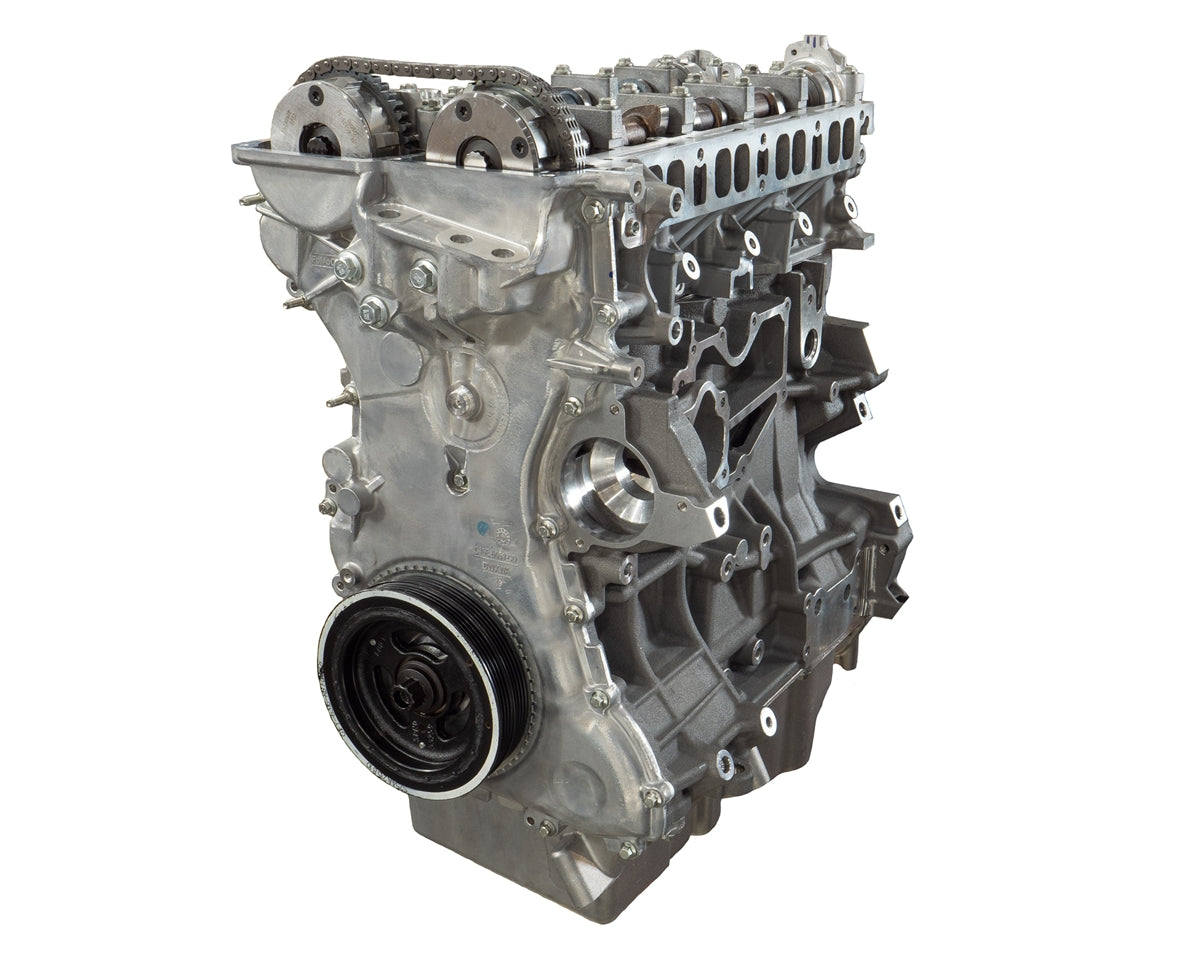

mountune High Performance 2.0L MRX Focus ST Long Block
mountune High Performance 2.0L MRX Focus ST Long Block
Mountune's extensive knowledge of the Ford EcoBoost engines coupled with our comprehensive motorsport experience provides the foundation for our premium 2.0L Ford EcoBoost long block assembly.

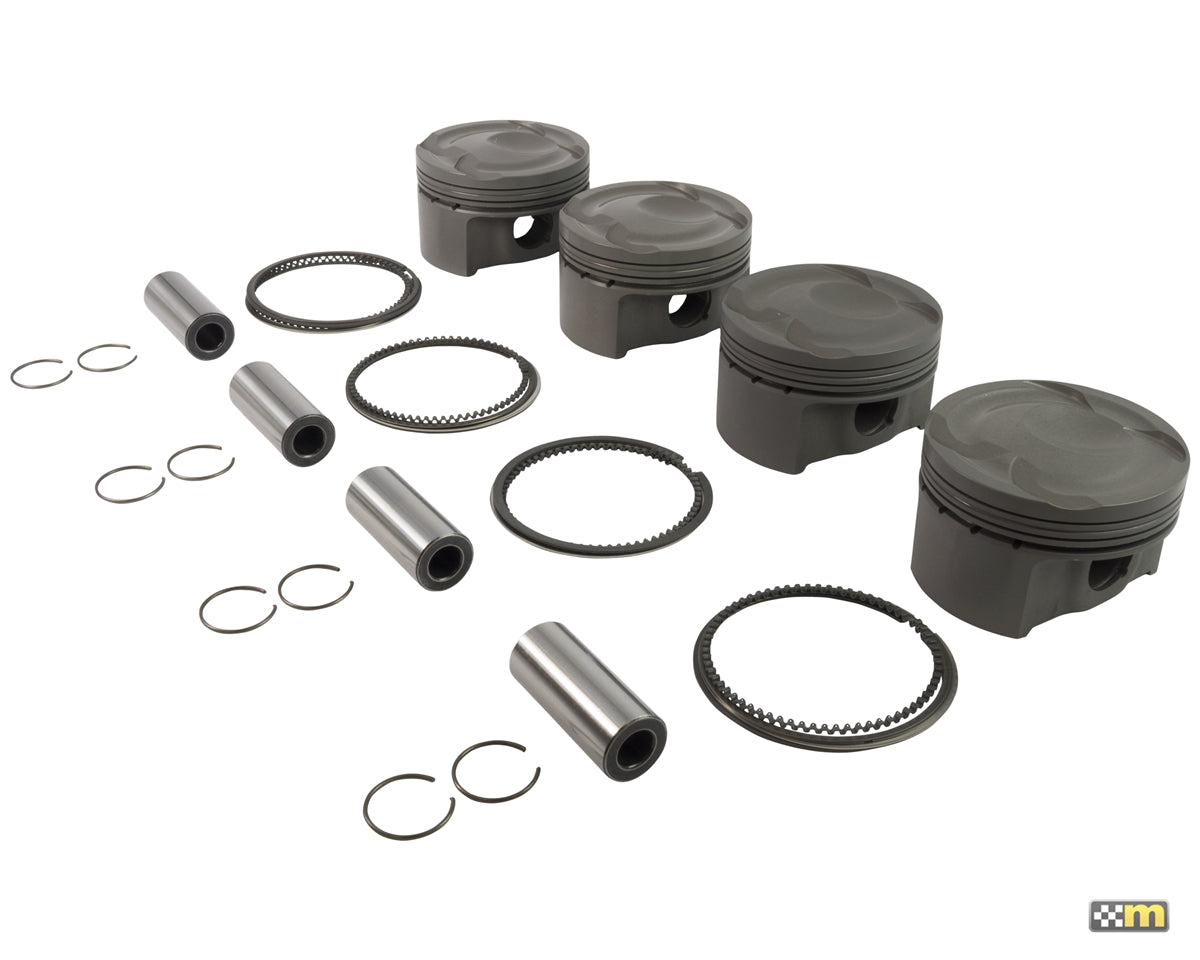

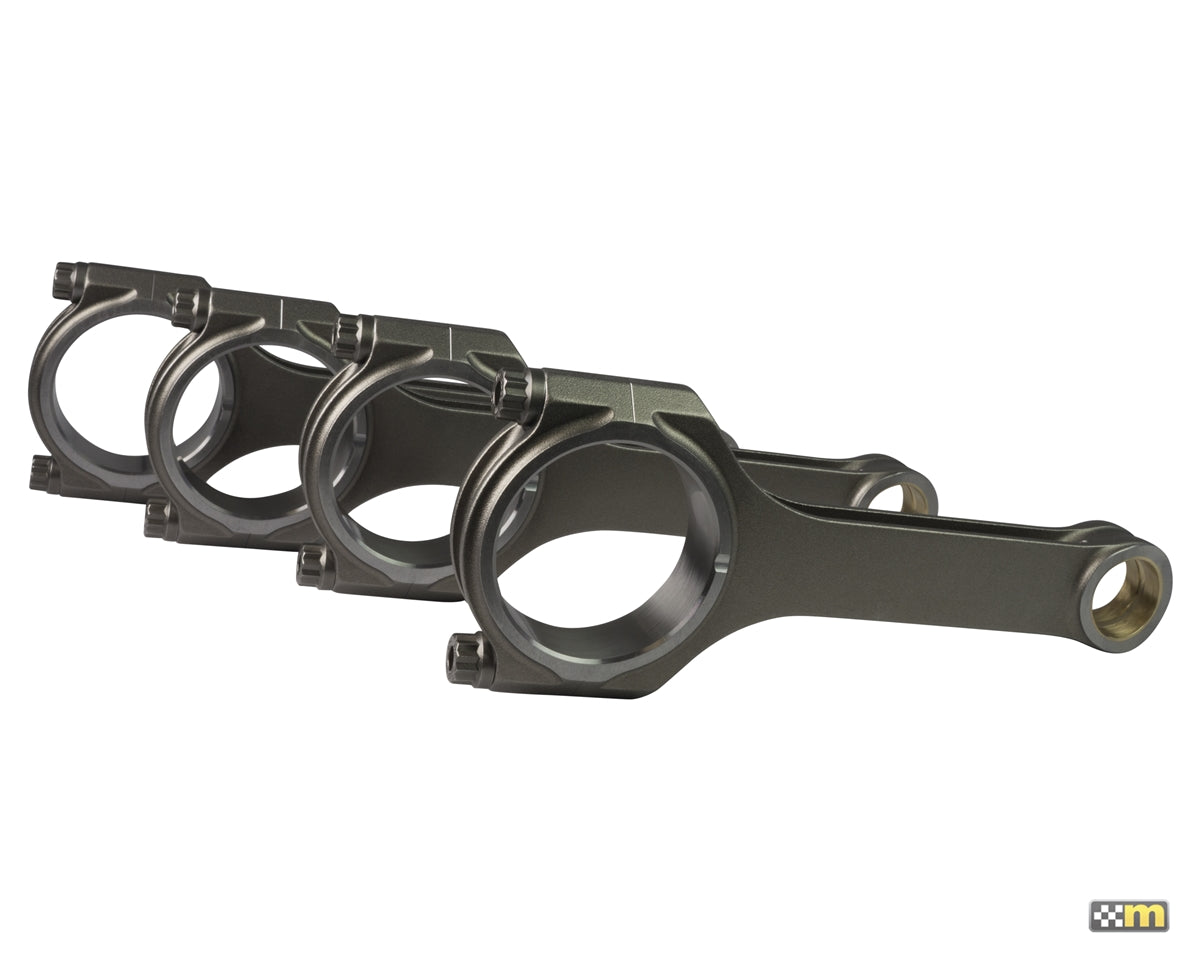

Each long block starts off as a brand new aluminum Ford Focus ST engine block then skillfully assembled with mountune forged pistons, forged i-beam connecting rods, tri-metal racing bearings, and a keyed OEM Focus ST crankshaft.
Engine Build Specifications
| Product Code | 6063-LB-201 |
| Base Engine | 2.0L Ford Ecoboost |
| Bore x Stroke | Ø 87.5 mm x 83.1 mm |
| Compression Ratio | 9.3:1 |
|
Piston |
Upgraded Forged Piston |
| Connecting Rod | Mountune Forged I Beam Rod |
| Crankshaft | OEM Focus ST w/ 3mm Key |
| Main Bearing | Mountune Race Tri-Metal |
| Main Bolts | Premium Grade 8740 Alloy |
| Application | Focus ST 2013-2018 |

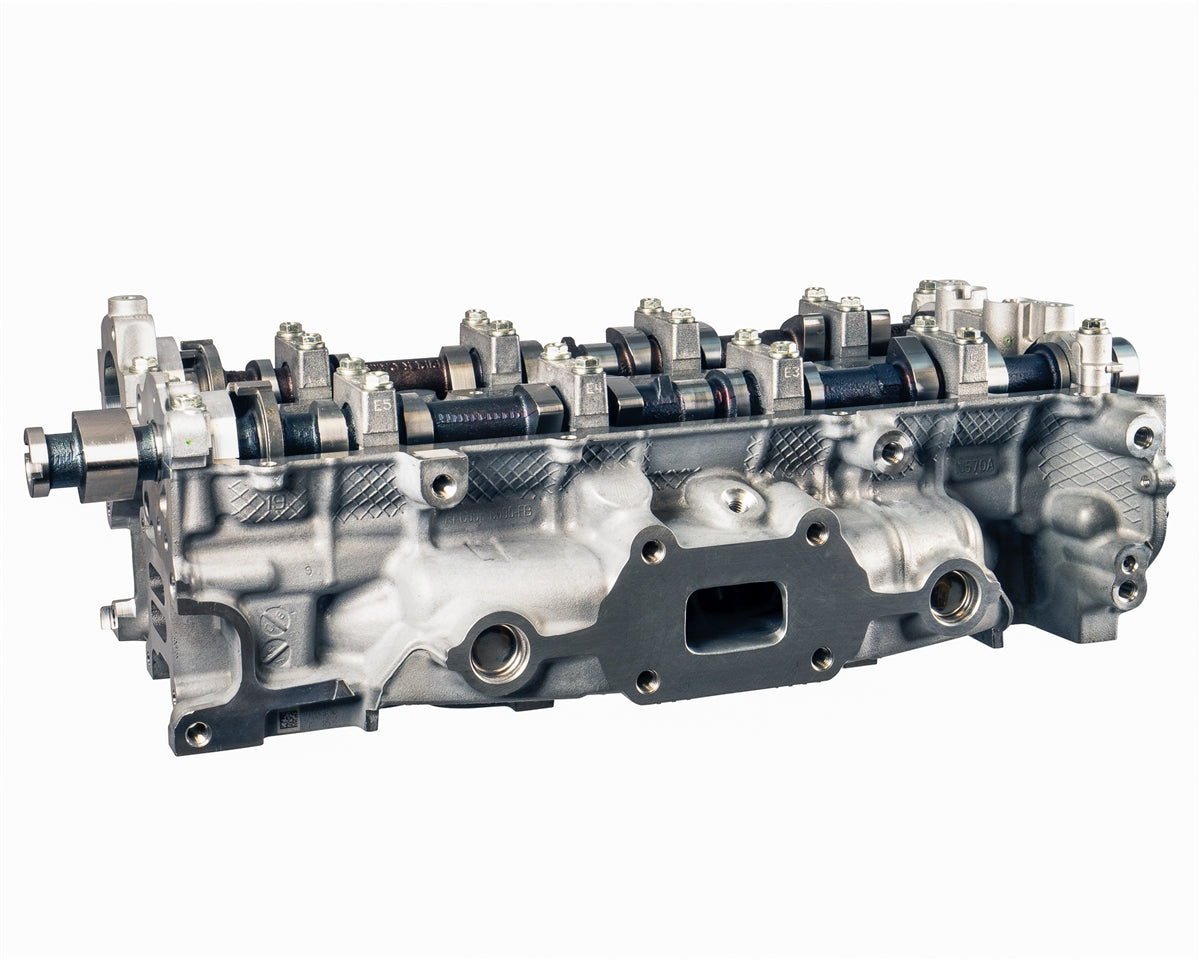

2.0L MRX Long Block is topped with a mountune MRX Cylinder Head - Focus ST

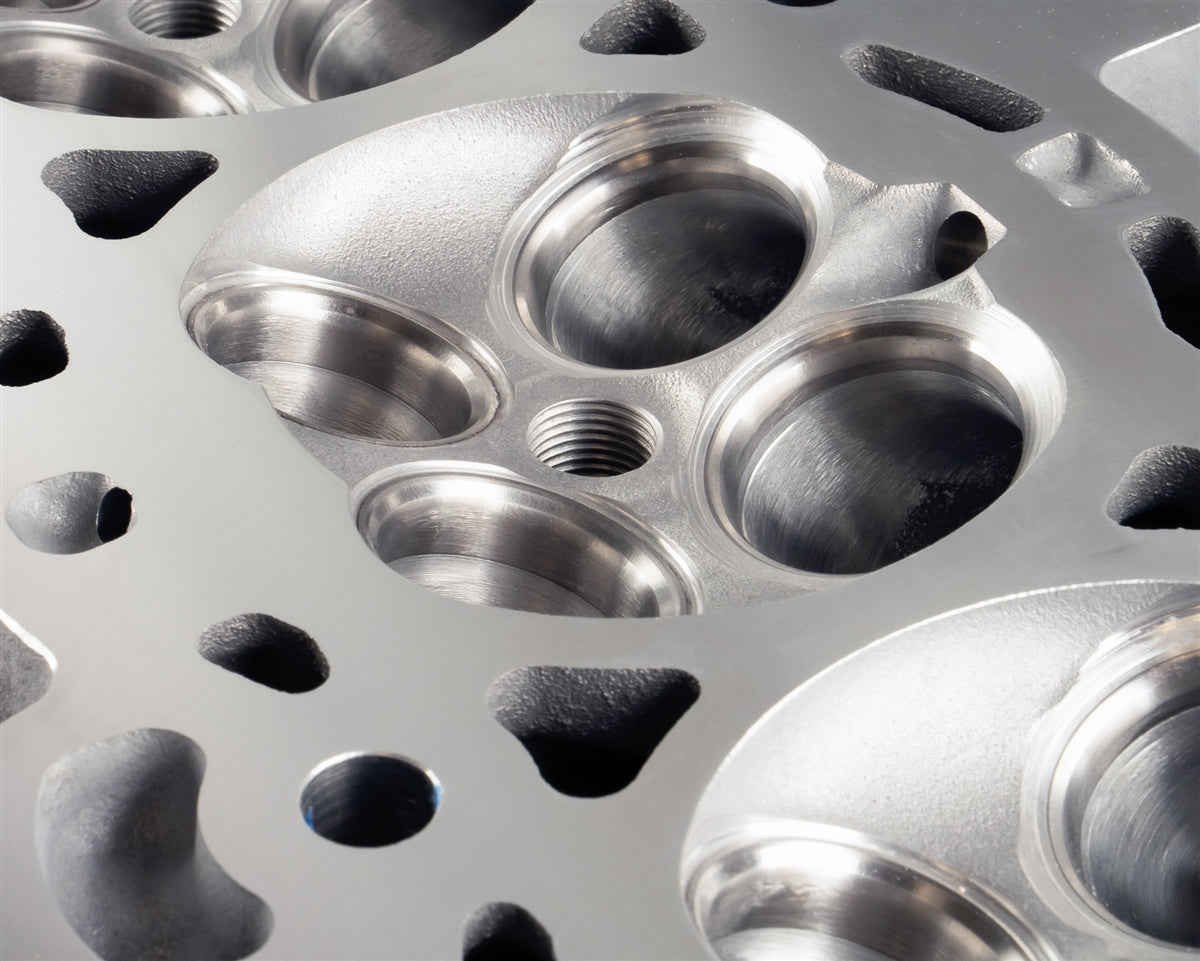

A factory Focus ST cylinder block that has undergone our precision MRX machining service for the best possible performance, increasing intake airflow by 44% and exhaust airflow by 19%.
The mountune MRX cylinder head for the Focus ST also features high-performance black nitrided intake valves, sodium inconel exhaust valves, along with our motorsport valve stem seals, and your choice of V2 or V3 camshafts.
The V2 Camshafts offer good all around drivability while providing excellent power and response. We recommend these for most applications.
V2 Camshaft Specifications:
| Intake Duration | 256º (OE Duration 234º) |
| Exhaust Duration | 244º (OE Duration 224º) |
| Intake Valve Lift | 9.60 mm (OE 8.00mm) |
| Exhaust Valve Lift | 8.53 mm (OE 6.99mm) |
The V3 Camshaft option works well with larger than stock turbochargers and enhances high RPM power level. Because of the longer duration and higher lift, rough idle should be expected and considerable tuning effort may be required for these camshafts to function correctly.
V3 Camshaft Specifications:
| Intake Duration | 264º (OE Duration 234º) |
| Exhaust Duration | 256º (OE Duration 224º) |
| Intake Valve Lift | 10.85mm (OE 8.00mm) |
| Exhaust Valve Lift | 9.70mm (OE 6.99mm) |

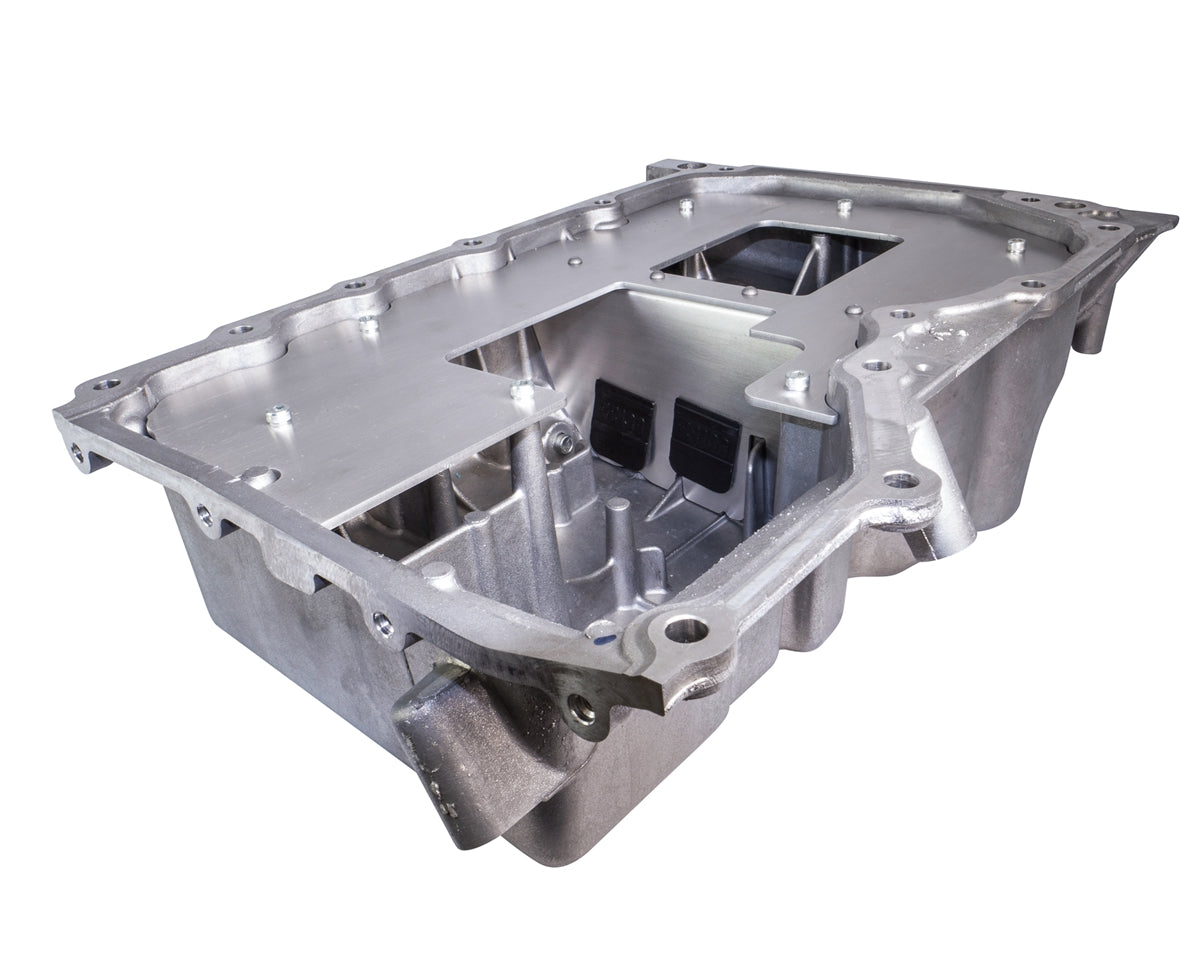

Also included: mountune COMPLETE OIL CONTROL SYSTEM, mountune HIGH PRESSURE OIL PUMP - 2.0L/2.3L ECOBOOST, and OEM head gasket
This engine is the perfect foundation for your Focus ST for high boost applications including track day use or as a direct replacement for your tired original engine.
