mountune High Performance 2.3L MRX Focus RS Long Block
mountune High Performance 2.3L MRX Focus RS Long Block
Mountune's extensive knowledge of the Ford EcoBoost engines coupled with our comprehensive motorsport experience provides the foundation for our premium 2.3L Ford EcoBoost long block assembly.

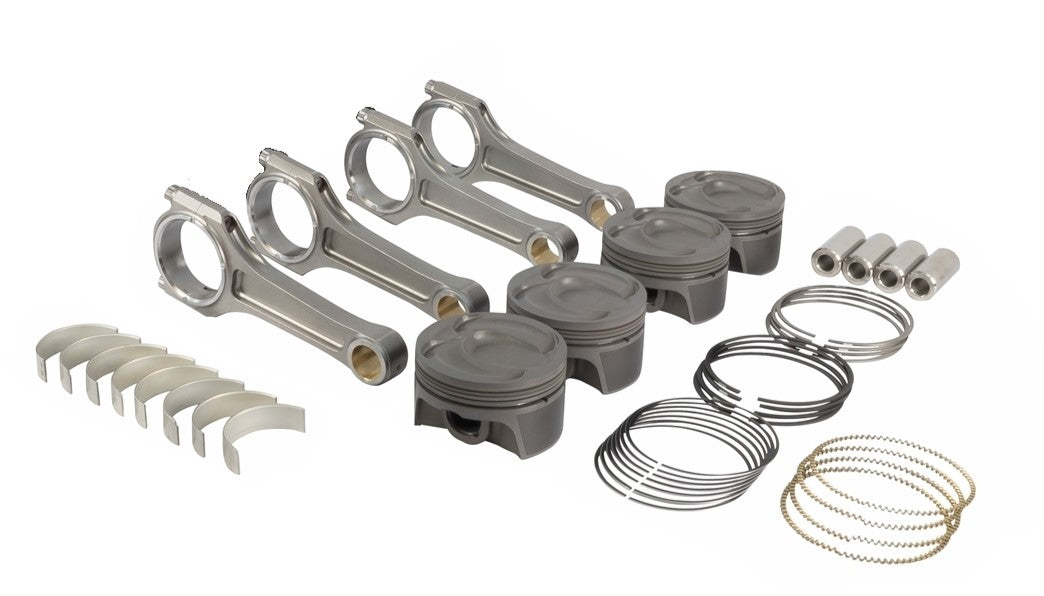

Each long block starts off as a brand new aluminum Ford Focus RS engine block strengthened with the Cylinder Support System then skillfully assembled with mountune forged pistons, forged i-beam connecting rods, tri-metal racing bearings, and a lightweight forged crankshaft.
There is also an optional upgrade to our lightweight forged crankshaft with an overall weight reduction of 9 lbs from stock for maximum performance and excellent engine response.
Engine Build Specifications
Product Code | 6069-LB-230HP |
Base Engine | 2.3L Ford Ecoboost |
Bore x Stroke | Φ 87.5 mm x 94 mm |
Compression Ratio | 9.5:1 |
Piston |
Upgraded Forged Piston |
Connecting Rod | Mountune Forged I Beam Rod |
Crankshaft | Lightweight Forged w/ Keyed Snout |
Main Bearing | Mountune Race Tri-Metal |
Main Bolts | Premium Grade 8740 Alloy |
Application | Focus RS 2016-2018 |
All NEW Components - No Core Charge
- New genuine Ford RS Engine Block w/ Cylinder Support System
- mountune MRX Cylinder Head w/ Camshafts (Option of V2 or V3 Cams)
- mountune Lightweight Forged Crankshaft 94mm with 3mm Key
- mountune Forged I-Beam Connecting Rod Set
- mountune Forged 87.5mm Piston Set
- mountune Baffled Oil Control Sump
- mountune ICR Head Gasket
- mountune Balance Shaft Delete Modification
- mountune High-Pressure Oil Pump
- mountune Piper High-Performance Camshaft and Valve Train
- New ARP Head Studs
- New genuine Ford complete Camshaft Drive Assembly
- New genuine Ford Front Pulley with 3mm Keyway
- New genuine Ford Rear Main Seal
- New genuine Ford cam cover
- mountune Tri-Metal Motorsport Main and Rod Bearings
- New genuine Ford Water Pump
- New genuine Ford Oil Cooler
- New genuine Ford High-Pressure Fuel Pump Mounting Housing
- New genuine Ford VVT Solenoids
- New genuine Ford Oil Dipstick
- New genuine Ford Engine Block Breather Plate
- New genuine Ford Spark Plugs
- New genuine Ford Oil Filler Cap
- New genuine Ford Camshaft angle sensor
A factory Focus RS cylinder block that has undergone our precision MRX machining service for the best possible performance, increasing intake airflow by 44% and exhaust airflow by 28%.
Our 2.3L EcoBoost MRX cylinder head also features high-performance black nitrided intake valves, sodium Inconel exhaust valves, our motorsport valve stem seals, and your choice of V2 or V3 camshafts.
The V2 Camshafts offer good all-around drivability while providing excellent power and response. We recommend these for most applications.
V2 Camshaft Specifications:
Intake Duration | 256º (OE Duration 234º) |
Exhaust Duration | 244º (OE Duration 224º) |
Intake Valve Lift | 9.60 mm (OE 8.00mm) |
Exhaust Valve Lift | 8.53 mm (OE 6.99mm) |
The V3 Camshaft option works well with larger-than-stock turbochargers and enhances the high RPM power level. Because of the longer duration and higher lift, rough idle should be expected and considerable tuning effort may be required for these camshafts to function correctly.
V3 Camshaft Specifications:
Intake Duration | 264º (OE Duration 234º) |
Exhaust Duration | 256º (OE Duration 224º) |
Intake Valve Lift | 10.85mm (OE 8.00mm) |
Exhaust Valve Lift | 9.70mm (OE 6.99mm) |
This engine specification is designed for typical track day use and those running up to 550 hp power levels with the proper supporting modifications.
Cylinder Support System Information
The Cylinder Support System is a proven method of strengthening open deck engine blocks while maintaining OEM integrity. The support ring is made from aircraft grade 6061-T6 aluminum. It prevents cylinder cracking, walking, and bell-mouthing.
